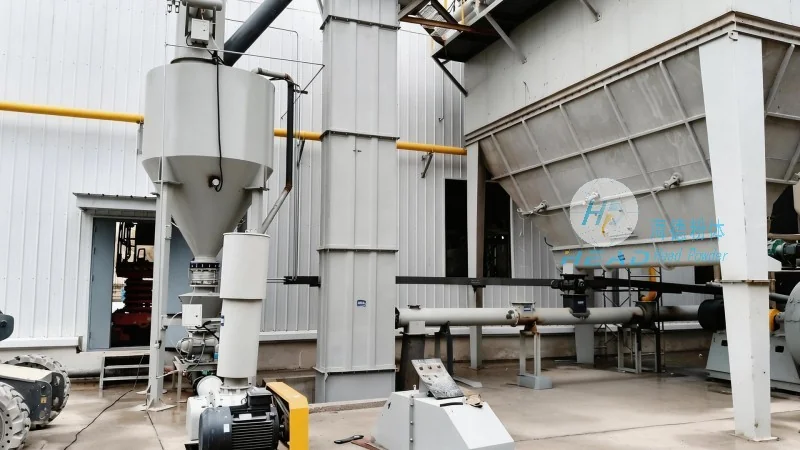

[Sand Casting Sand Pneumatic Conveying Design Calculation and Equipment Selection]

For foundries and sand casting manufacturers, the efficient and reliable transport of sand casting materials is a critical factor in maintaining production efficiency and quality. Pneumatic conveying systems offer a versatile solution for handling sand, allowing for seamless material movement from storage to processing areas. This article explores the design calculation principles and equipment selection process for pneumatic conveying systems specifically tailored for sand casting applications, with a focus on optimizing performance and ensuring long-term operational success.

Understanding the Core Principles of Pneumatic Conveying Design

The design of a pneumatic conveying system for sand casting involves a systematic approach to ensure that the system meets the specific requirements of the production environment. Key design considerations include the material characteristics of the sand, such as its density, moisture content, and particle size distribution, as well as the desired conveying distance, flow rate, and system pressure. These parameters are crucial for determining the appropriate equipment configuration and ensuring that the system operates within safe and efficient parameters.

System Design Calculation Steps

When designing a pneumatic conveying system for sand casting, engineers typically follow a structured calculation process. The first step involves determining the required conveying capacity, which is based on the production rate and the amount of sand that needs to be moved per hour. This is followed by the calculation of the necessary air flow rate and pressure, which are critical for maintaining the material in suspension and ensuring smooth transport through the system. The design also considers the layout of the conveying line, including the number and type of bends, vertical lifts, and horizontal runs, as these elements impact the overall pressure drop and energy consumption.

Equipment Selection for Sand Casting Pneumatic Conveying

Choosing the right equipment is essential for the successful operation of a pneumatic conveying system. For sand casting applications, the selection process typically includes several key components. The primary equipment includes a sand feeder or hopper that can handle the bulk material and feed it into the conveying line at a controlled rate. The feeder must be designed to minimize material degradation and ensure consistent flow, which is vital for maintaining the quality of the sand casting process.

Pneumatic Conveying Lines and Components

The conveying line itself is a critical component of the system, and its design must account for the material's properties and the system's operating conditions. The choice of pipe material, diameter, and length is determined by factors such as the required flow rate, pressure drop, and the need to minimize material buildup or blockages. In addition to the main conveying line, the system may include components such as expansion joints, filters, and dust collectors to ensure that the material is transported efficiently and that the system remains clean and operational.

Separation and Collection Equipment

At the end of the conveying line, separation and collection equipment is used to separate the sand from the air and return the sand to the process. This typically involves a cyclone separator or a baghouse filter, which can effectively separate the sand particles from the air stream. The design of these components is critical to ensure that the sand is recovered with minimal loss and that the air is cleaned before being discharged or recirculated. Proper selection of the separation equipment is essential for maintaining the quality of the sand and preventing contamination in the casting process.

Company Profile: Shandong HeadPowder Engineering Co., Ltd.

HeadPowder, a leading provider of engineering solutions for material handling and processing, specializes in the design and implementation of pneumatic conveying systems for sand casting applications. With a focus on innovation and customer-centric solutions, HeadPowder offers comprehensive services that cover the entire project lifecycle, from initial design and calculation to equipment selection and installation. The company is headquartered in Shandong, China, and serves clients globally with expertise in optimizing material handling processes for foundries and manufacturing facilities.

Conclusion: Optimizing Sand Casting Operations with Pneumatic Conveying

Effective pneumatic conveying design and equipment selection are essential for enhancing the efficiency and reliability of sand casting operations. By carefully considering the material properties, system requirements, and operational constraints, manufacturers can develop a conveying system that meets their specific needs while minimizing costs and maximizing performance. With the right design and equipment, foundries can improve production throughput, reduce material waste, and maintain the high quality standards required for sand casting applications. HeadPowder, with its expertise in pneumatic conveying systems, provides the necessary support to help manufacturers achieve these goals and optimize their sand casting processes.
